VA-8650WM
8 Zone Voice Evacuation Controller
Learn more
EN54 — Voice Evacuation · Wall Mounted Series

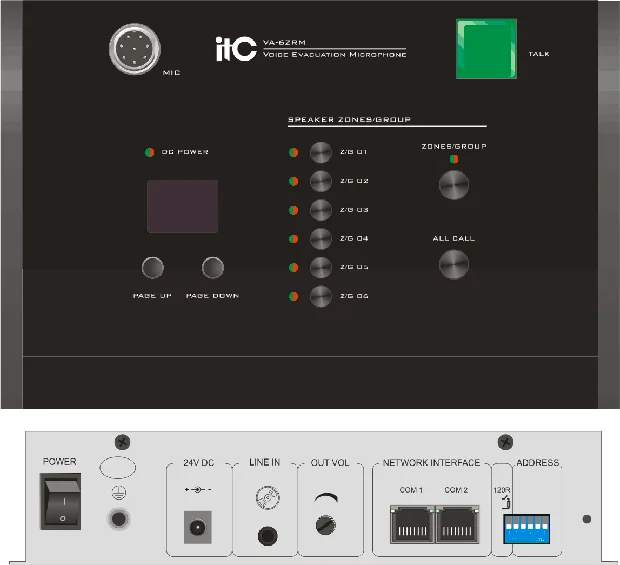

itc New Product VA-6ZRM with Voice Evacuation Microphone
Features
- Support 40 zones, 6 group button paging.
- Support zone configuration to any grouping.
- Support consecutive paging for any controller of 1 ~ 6 zones.
- Support line input / microphone output. And output volume is adjustable.
- Remote microphone paging priority can be configured.
- Display the zone status of the associated controller in real time.
- upport 24 DC power supply, POE power supply.
- The system supports up to 28 remote microphones.
- Performance index
- Analog audio
- Balanced line output
- Communication
- Mechanical indicators
- Environmental requirements
Technical specifications
| MIC microphone input | |
|---|---|
| Sensitivity | 10MV±1mV |
| Frequency response | 200Hz~10kHz |
| Input impedance | ≥1kΩ |
| LINE unbalanced line audio input | |
| Sensitivity | 775MV±50mV |
| Frequency response | 80Hz~16kHz |
| Impedance | ≥10kΩ |
