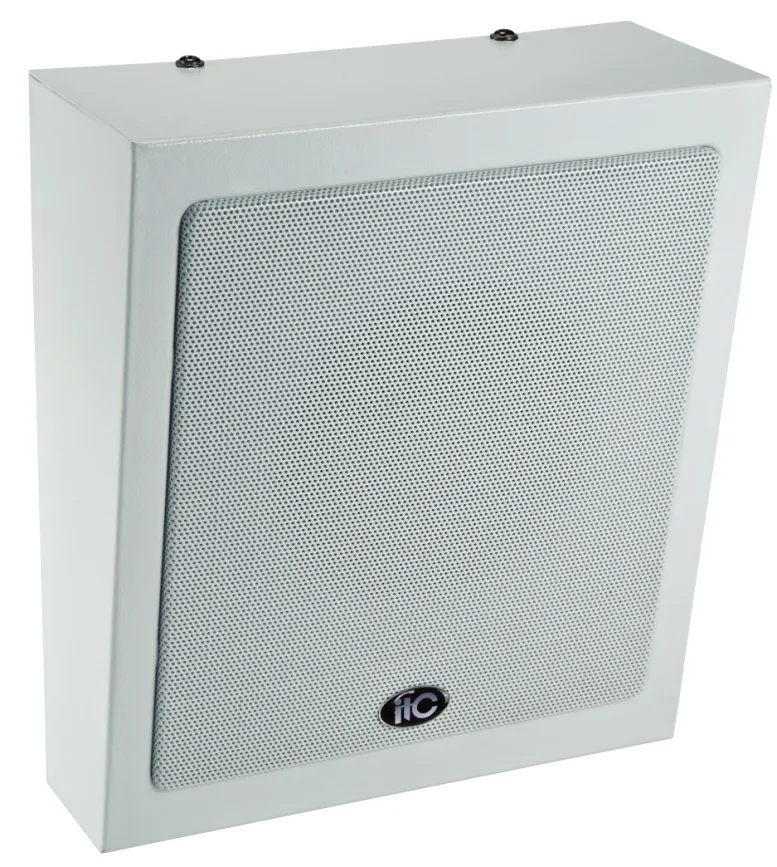

T-776S
Wall Mount Speaker
Learn more
PA Systems — Public Address · Wall Mounted Speaker
Descriptions:
5" fireproof version wall mount speaker
Ceramic connector, thermal use and fire-resistant cable
4 power taps at 100V output
All metal material design with fire proof box
Fast installation by screw hook
Technical specifications
| Model | VA-515 |
|---|---|
| Power Taps @100V | 0.75W, 1.5W, 3W, 6W |
| Power Taps @70V | 0.37W, 0.75W, 1.5W, 3W |
| Impedance | Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ |
| SPL(1W/1M) | 91dB ±3 dB |
| Max. SPL (Rated W/1M) | 99dB |
| Frequency Response (-10dB) | 100-16KHz |
| Finish | Baffle: Steel, White Grille: Steel, White |
| Speaker Driver | 5" x 1 |
| Cutout Size | / |
| Dimensions | 245 x 212 x 95mm |
| Weight | 1.9Kg |
| Mounting | Hook |
