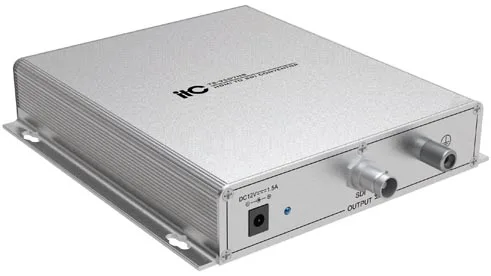

TS-9507SH
HD Signal Converter
Learn more
Central Control & Matrix · Others
It is specialized to transform HD or SD HDMI signals to SDI signals. The device integrates an SDI receiver and an HDMI modulator to easily convert HDMI signals into SDI signals.
Features
- Serial port control or external code switch to select the resolution.
- HDMI input supports HDMI1.3, compatible with HDMI 1.2 and HDMI 1.1.
- Maximum 2.97Gbps SDI HD video signal output.
- Input resolution up to 1920 x 1080P@60Hz.
- Output resolution up to 1920 x 1080P@30Hz.
Technical specifications
| Model | TS-9507HS |
|---|---|
| HDMI input | |
| Supported protocol | HDMI1.3a, HDCP1.3，EDID1.4 |
| Pixel bandwidth | 225MHz , fully digital |
| Interface bandwidth | 3.25Gbps, fully digital |
| Signal strength | T.M.D.S. +/- 0.4Vpp |
| Minimum/maximum level | T.M.D.S. 2.9V/3.3V |
| Impedance | Differential 100Ω |
| Input resolution | 800X600@60Hz、1024X768@60Hz、1280X720@60Hz、1280X800@60Hz、1280X1024@60Hz、1366X768@60Hz、1440X900@60Hz、1600X900@60Hz、1920X1080p@60Hz |
| Output | |
| Port | Female port BNC connector |
| Gain | 0db |
| Lock rate | Auto |
| Operating standard | SMPTE 292M,SMPTE 259M,SMPTE 242M,ITU-RBT.601 |
| | ITU-RBT.1120 |
| Input return consumption | <-14 dB @ 1MHz ~ 1.5GHz |
| Output return consumption | <-12 dB @ 1MHz ~ 1.5GHz |
| Maximum rate | 2.97Gbps |
| Data mode | 8 or 10bit |
| Input and output level | 0.80Vp-p+/- 10% |
| Input and output impedance | 75 Ω |
| Equilibrium type | Automatic |
| Maximum input distance | 100M |
| Serial port control | |
| interface | Phoenix port |
| Electrical level | RS232 |
| Baud rate | 9600bps |
| Specification | |
| Operating temperature | -20℃～ +70℃ |
| Environment humidity | 20%～80% relative humidity, no condensation |
| Input power | DC12V 1.5A |
| Maximum power consumption | 6W |
| Dimension (LxWxH) | 163x156x32 mm |
