KA-2100HS
Linear Array Speakers
Learn more
Professional Audio · Line Array

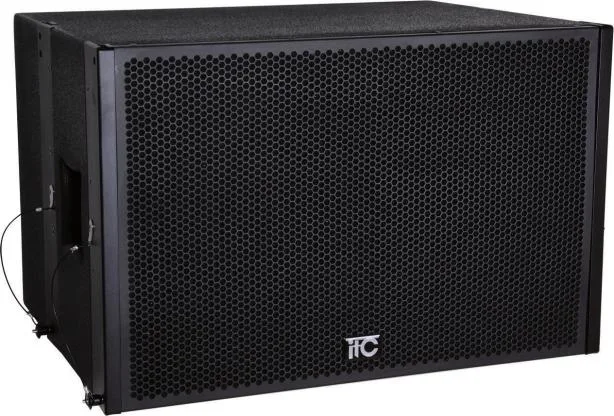

The linear array speaker is combined of tweeters and woofers. Using 15mm birch, its housing is small in size, light in weight, and it also adopts wear-resistant paint treatment and dust-proof net cotton inside. The combination of hoisting installation and linear array design, allows 0-14 degrees of adjustable coverage area of the speaker, and has the advantages of compact combination, lightweight, and convenient engineering assembly.
Features
- Plug and play, user-friendly operations.
- Special aluminum alloy hanger combination, simple hanging method, convenient engineering assembly.
- With excellent frequency response, and the flat frequency output within 45Hz-20KHz.
- Strong power, smooth and soft sounds, high reduction.
- Applicable to conference halls, multi-function halls, and entertainment places, etc.
Technical specifications
| Model | LA-2650 | LA-1200 |
|---|---|---|
| Type | 2-frequency linear array full-range speaker | Woofer |
| Rated power | 150W (AES) | 350W(AES) |
| Peak power | 600W | 1400W |
| Nominal impedance | 6Ω | 8Ω |
| Frequency range | 85Hz~20KHz | 45Hz-400Hz |
| Sensitivity | 99dB (1M/1W ) | 99dB (1M/1W) |
| Max SPL(rated/peak) | 121dB/127dB | 124dB/130dB |
| Woofer | 6.5" x 2 | 12" x 1 |
| Tweeter | 34mm (1.34") compressed driver×1 | / |
| Horizontal coverage angle (-6dB) | 90° | / |
| Vertical coverage angle (-6dB) | 10° | / |
| Net weight | 14.5Kg | 25.4Kg |
| Size(H×D×W) | (230+150) ×290×620mm | 400x450x620 mm |
