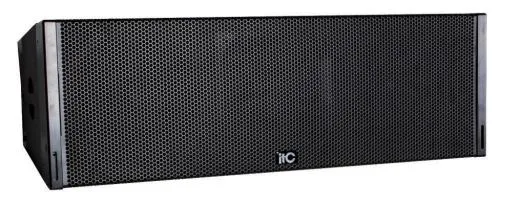

LA-2650/LA-1200
Line Array Speaker
Learn more
Professional Audio · Line Array
The linear array speaker has a wide range of applications. It can be used with the professional amplifier and audio processor. It is suitable for large outdoor performances, large theaters, stadiums, etc.
Features
- Imported birch housing, small in size and light in weight, wear-resistant paint treatment.
- Using two 12" woofer units and a 3" tweeter driver, the sound is full of sensitivity and penetration.
- Frequency divider in precise design can optimize the power response and the vocal MF performance.
- The combination of hoisting installation and linear array design, allows 0-10 degrees of adjustable coverage area of the speaker, and has the advantages of compact combination, lightweight, and convenient engineering assembly.
- Professional hanger combination, simple hanging method, convenient assembly.
Technical specifications
| Model | LA-2120 | LA-2180 |
|---|---|---|
| Type | 2-frequency linear array speaker | Subwoofer |
| Rated power | 800W | 1200W |
| Peak power | 3200W | 4800W |
| Nominal impedance | 8Ω | 4Ω |
| Frequency range | 55Hz-20KHz | 40Hz-400KHz |
| Sensitivity | 101dB | 100dB |
| Maximum SPL(rated/peak) | 131dB/137dB | 31dB/137dB |
| Woofer | 12" woofer ×2 | 18"×2 |
| Tweeter | 3" compressed driver ×1 | / |
| Horizontal coverage angle(-6dB) | 110° | / |
| Vertical coverage angle(-6dB) | 10° | / |
| Size(H×W×D) | (330+260)×1000×485 mm | 545×1000×780mm |
| Weight | 37.5kg | 83.9kg |
